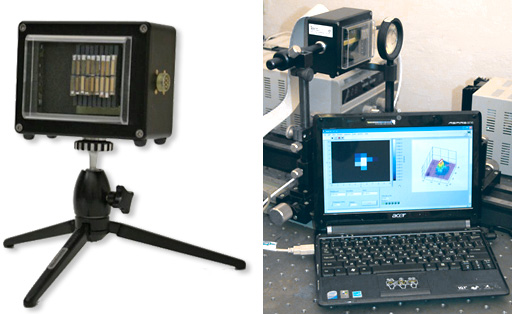

T-rays Camera Prototype

Parameters of Terasense^® sensor arrays (imaging matrixes)

• Number of pixels: 32 x 32 (current), 100 x 100, 300 x 300
• Scalability: infinite
• Frequency mixing: direct multiplied sources
• Frequency range: 0.1- 0.8 THz
• Signal readout time: 1 sec.
• Operation temperature: room (300 K)
• NEP = 2 pW / Hz1/2
• Responsivity = 100 V/W
• Both GaAs and Si based technologies are available
